Scratch Maze Game – Digital Worksheet

1

Before You Start: Sprites vs Backgrounds

This is the biggest mistake students make — drawing the sprite on the stage.

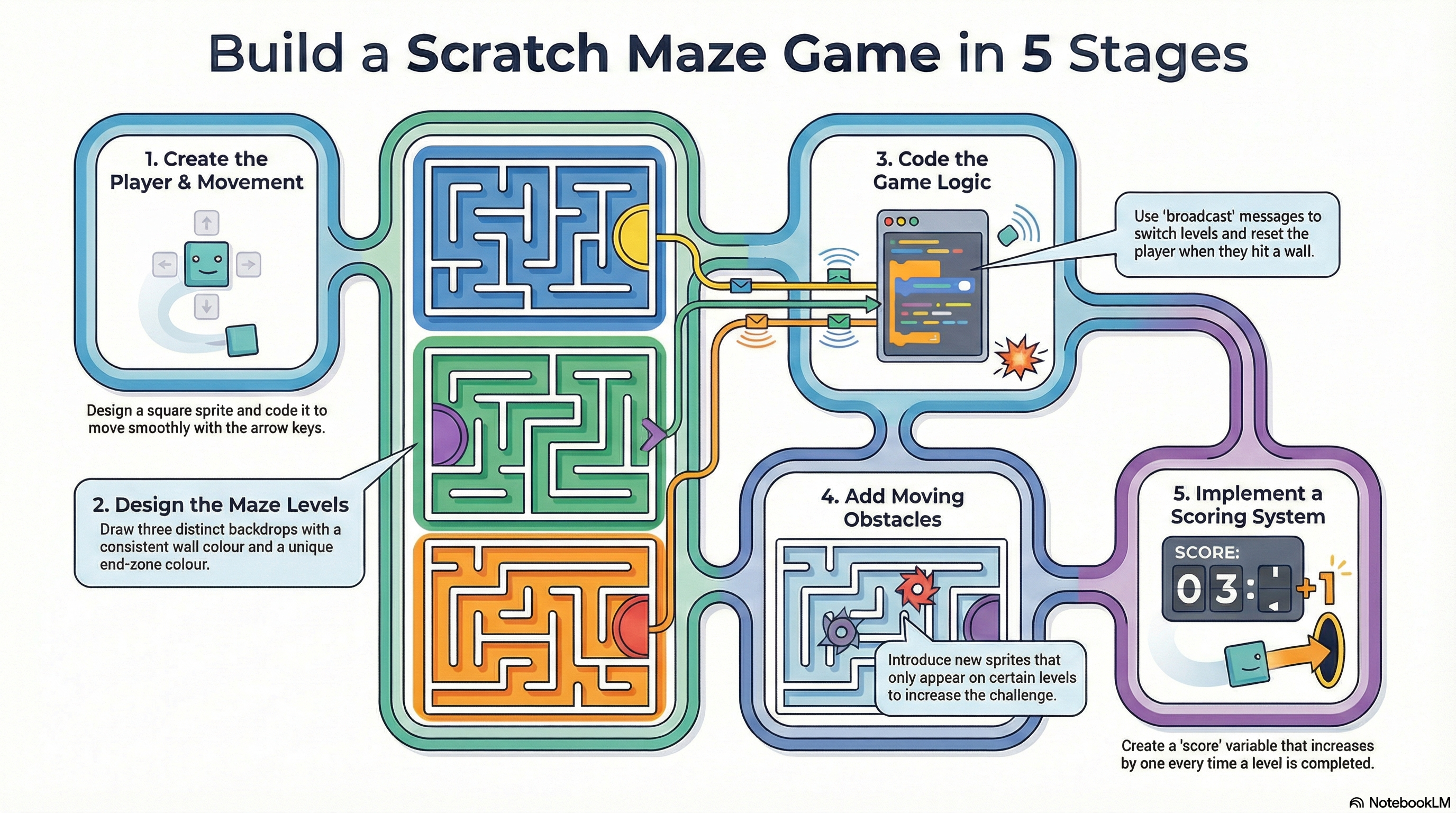

Click the infographic to enlarge

How to use the videos (do this every stage):

You cannot watch the whole video and remember every step. Instead: watch ~30 seconds, pause, then build that section in Scratch. Repeat.

Split your screen so you can see Scratch and the video at the same time.
Windows: open Scratch and the worksheet/video, then press Windows key + Left Arrow to snap one app to the left. Click the other window to fill the right.
If you want Scratch bigger: drag the divider so Scratch takes about 2/3 of the screen and the video takes 1/3.

Sprites move and have code
Backgrounds (Stage) are the maze levels
Sprites use the Costumes tab
Backgrounds use the Backdrops tab

If the tab says Backdrops, you are editing the stage — not a sprite.

I understand the difference

Screenshot step-01-sprite-vs-stage.png

3

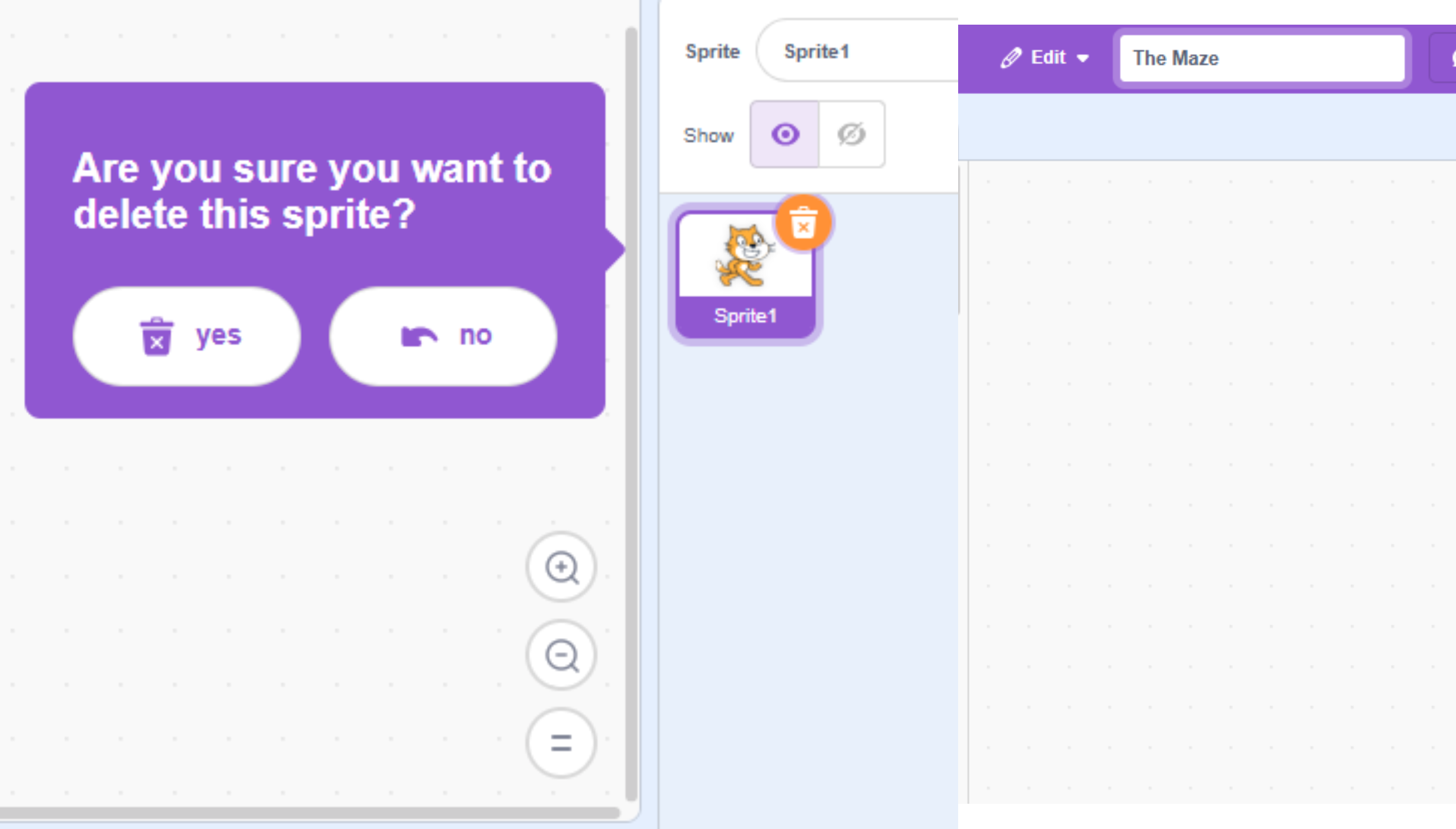

Set Up the Project

Delete the cat, log in, and name your project so it saves properly.

▶ Video 1 help (Project setup)

Log in to Scratch
Name the project: Maze Game
Delete the Scratch cat sprite

Project is named + saved

2

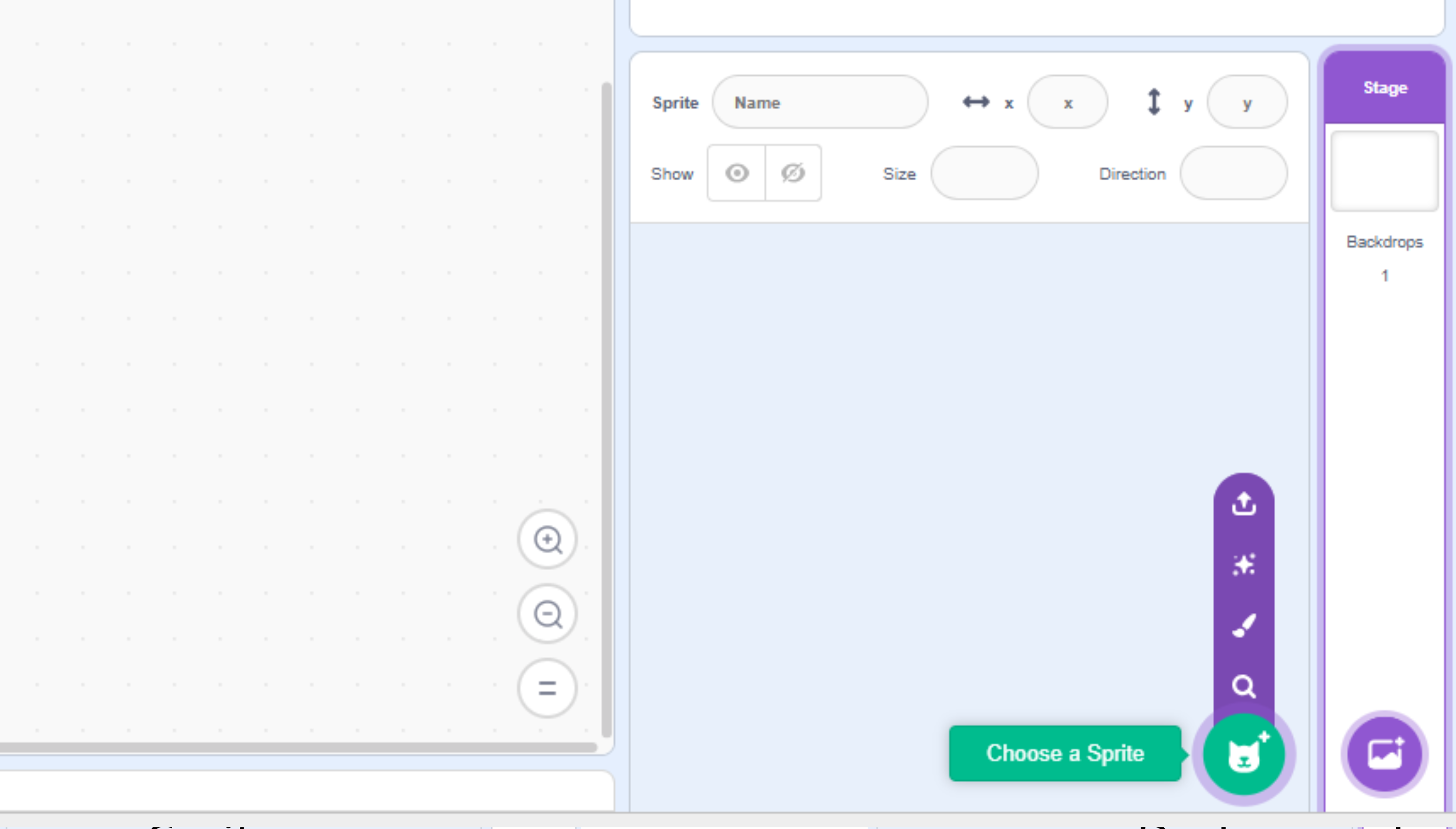

Create a Sprite the Correct Way

Important: HOVER over the cat icon to reveal the paintbrush. Don’t click it directly.

▶ Video 1 help (Sprite creation)

Go to the Sprite area (bottom-right)
HOVER over the cat face
Click the paintbrush (not the sprite library)

If a big library of premade sprites opens, you clicked (wrong). Close it and hover instead.

I used the paintbrush correctly

4

Draw the Player Sprite

Make a square sprite and centre it perfectly on the crosshair.

▶ Video 1 help (Drawing + centring)

Go to Costumes
Outline: Invisible
Fill: choose a colour (e.g., red)
Hold SHIFT to draw a perfect square
Move the square so its centre sits on the crosshair
Check: Tab says Costumes (if it says Backdrops, you’re on the stage)
Use the magnifying glass to zoom in if it’s fiddly
If the sprite looks ‘wonky’ when moving, re-centre it on the crosshair

If it isn’t centred, your sprite will move “wonky”.

My sprite is centred on the crosshair

5

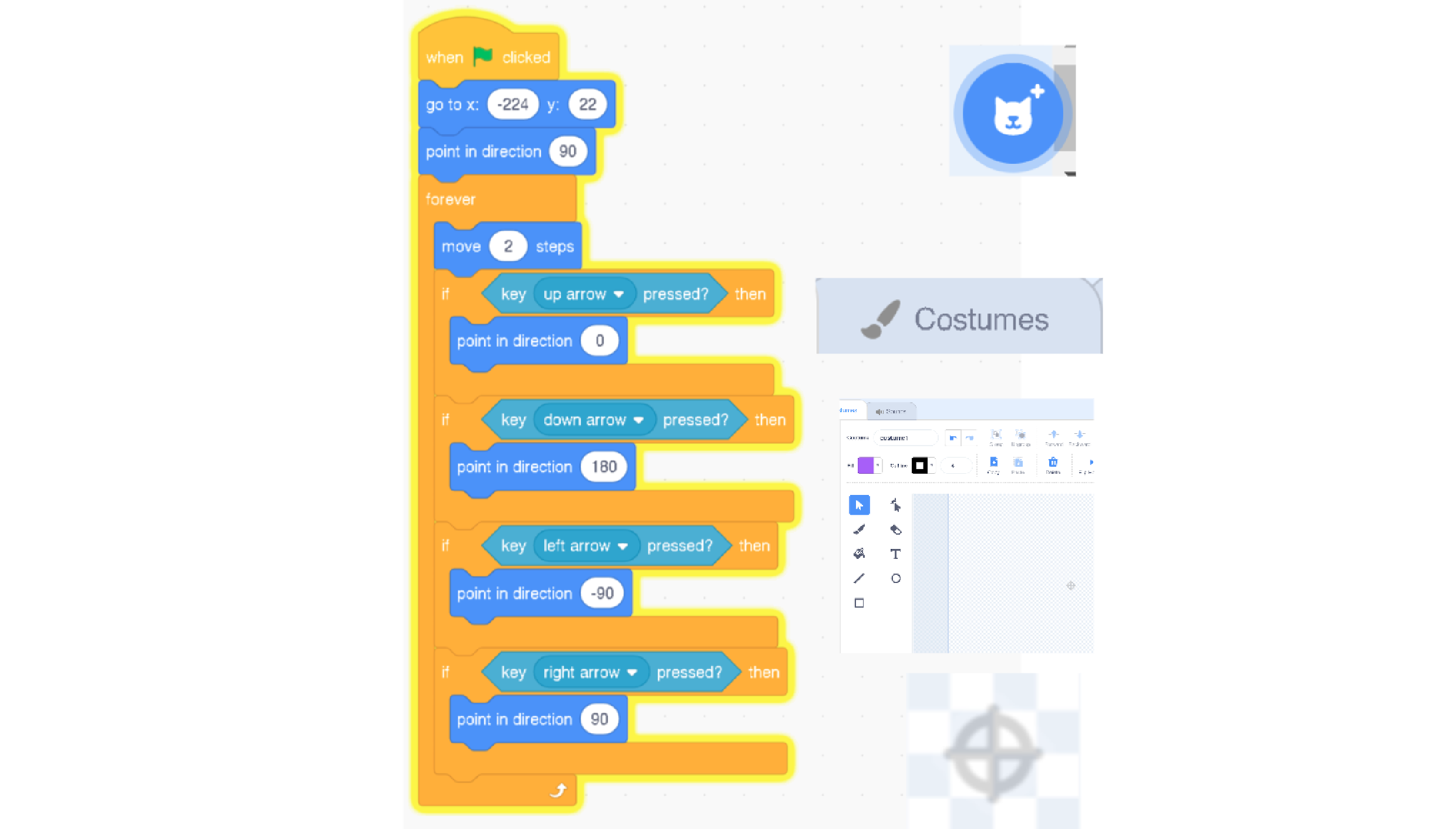

Add Basic Movement Code

Green flag starts movement + arrow keys change direction.

▶ Video 1 help (Movement code)

Events: when green flag clicked
Motion: go to x/y (start position)
Motion: point in direction
Control: forever → Motion: move 2 steps
Four IF blocks (not nested) for arrow keys → change direction
Move the sprite to your start position in the Code window (not in Costumes)
Use the go to x/y block so it always resets to the same start point
If it’s too fast, lower the move steps number (e.g., 2)
Duplicate the IF blocks and snap them directly underneath (don’t put them inside each other)

Don’t put the arrow-key IF blocks inside each other. Stack them underneath.

Arrow keys change direction correctly

6

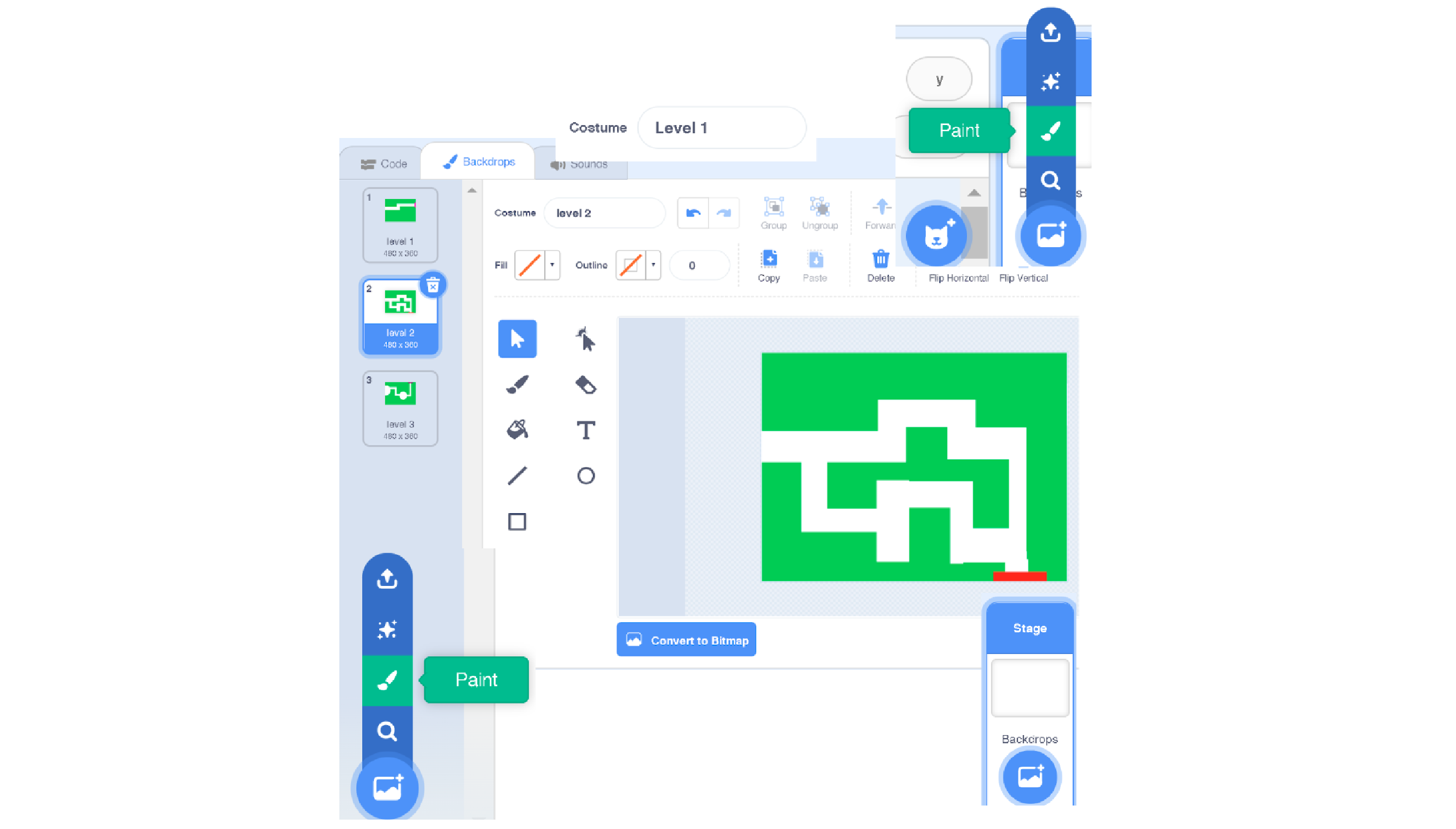

Create Level Backdrops

Make three maze levels on the Stage (Backdrops tab), each with a different finish square colour.

▶ Video 2 help (Backdrops / levels)

Click Stage → Backdrops
Create: Level 1, Level 2, Level 3
Walls: one wall colour (same across all levels)
Finish: different colour square at the end of each level
Levels should get harder each time
Wall colour must be different to your sprite colour (or it will constantly reset later)
Keep the same wall colour across all levels (don’t add extra colours to the walls)
Use arrow keys to nudge shapes into position neatly
Test each level: can your sprite actually fit through the gaps?

I have 3 backdrops named Level 1–3

7

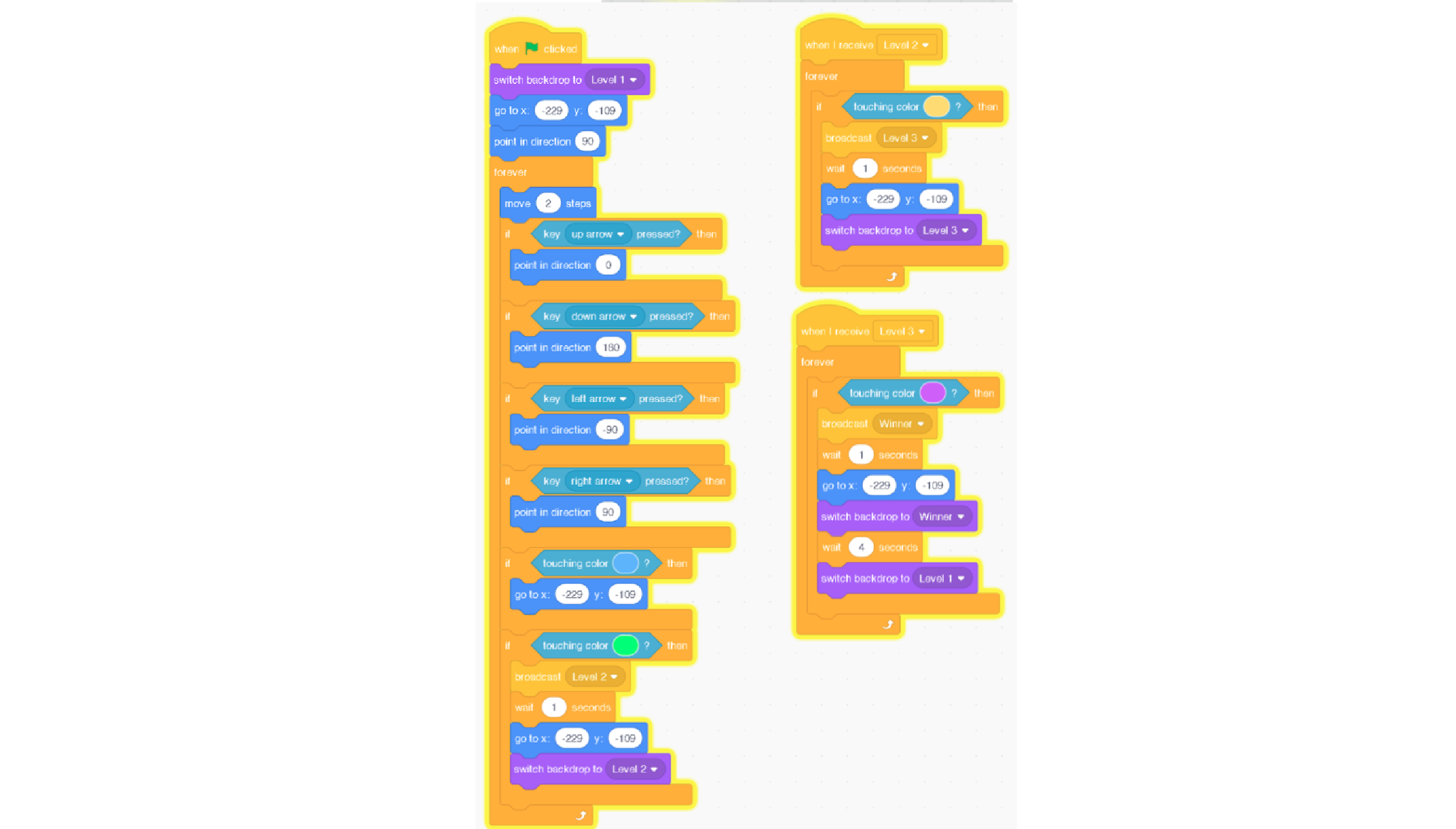

Broadcasts: Level Switching + Reset on Wall

Touching wall resets. Touching finish broadcasts “Level 2 / Level 3 / Winner”.

▶ Video 3 help (Broadcasts)

Looks: switch backdrop to Level 1 at start

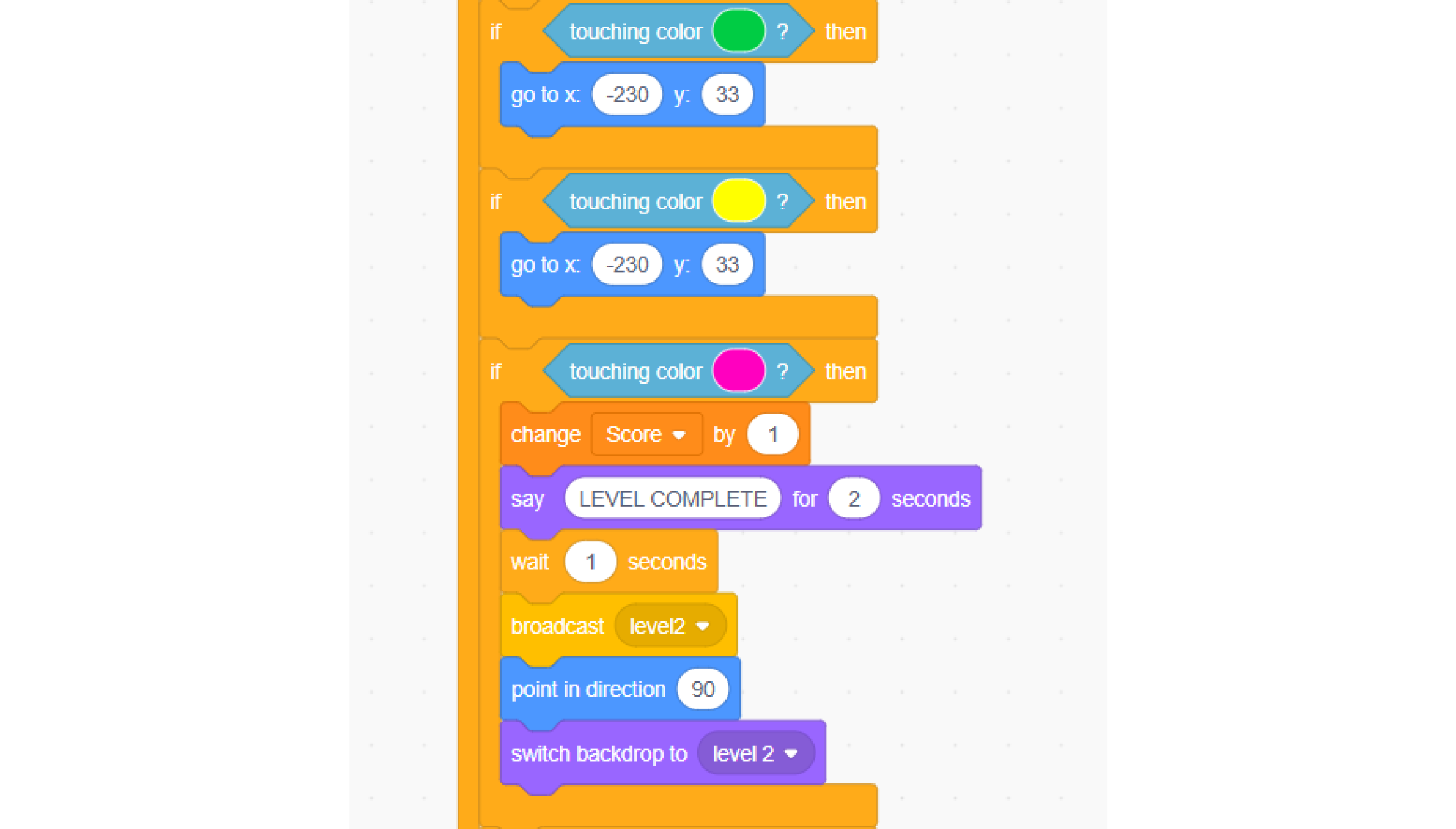

IF touching wall colour → go back to start
IF touching finish colour → broadcast Level 2/3/Winner
Use the pipette to pick colours exactly
Add broadcasts: Level 2, Level 3, and Winner (create new message each time)
After broadcasting: wait 1 second → go to start → switch backdrop
Create receiver scripts: when I receive Level 2 and when I receive Level 3
For colour checks: click the colour square → use the pipette (don’t try to match it by eye)

Touching wall resets correctly

8

Winner Backdrop

Make a “Winner” backdrop and switch to it when the game is completed.

▶ Video 3 help (Winner screen)

Create new backdrop: Winner
Text tool: write “WINNER”
On Winner broadcast: switch backdrop → wait 4 seconds → switch back to Level 1
Rename the backdrop to Winner (so it matches your code dropdown)
After switching to Winner: wait 4 seconds so the player can see their result
Then switch back to Level 1 so the game restarts

Winner screen appears then resets

9

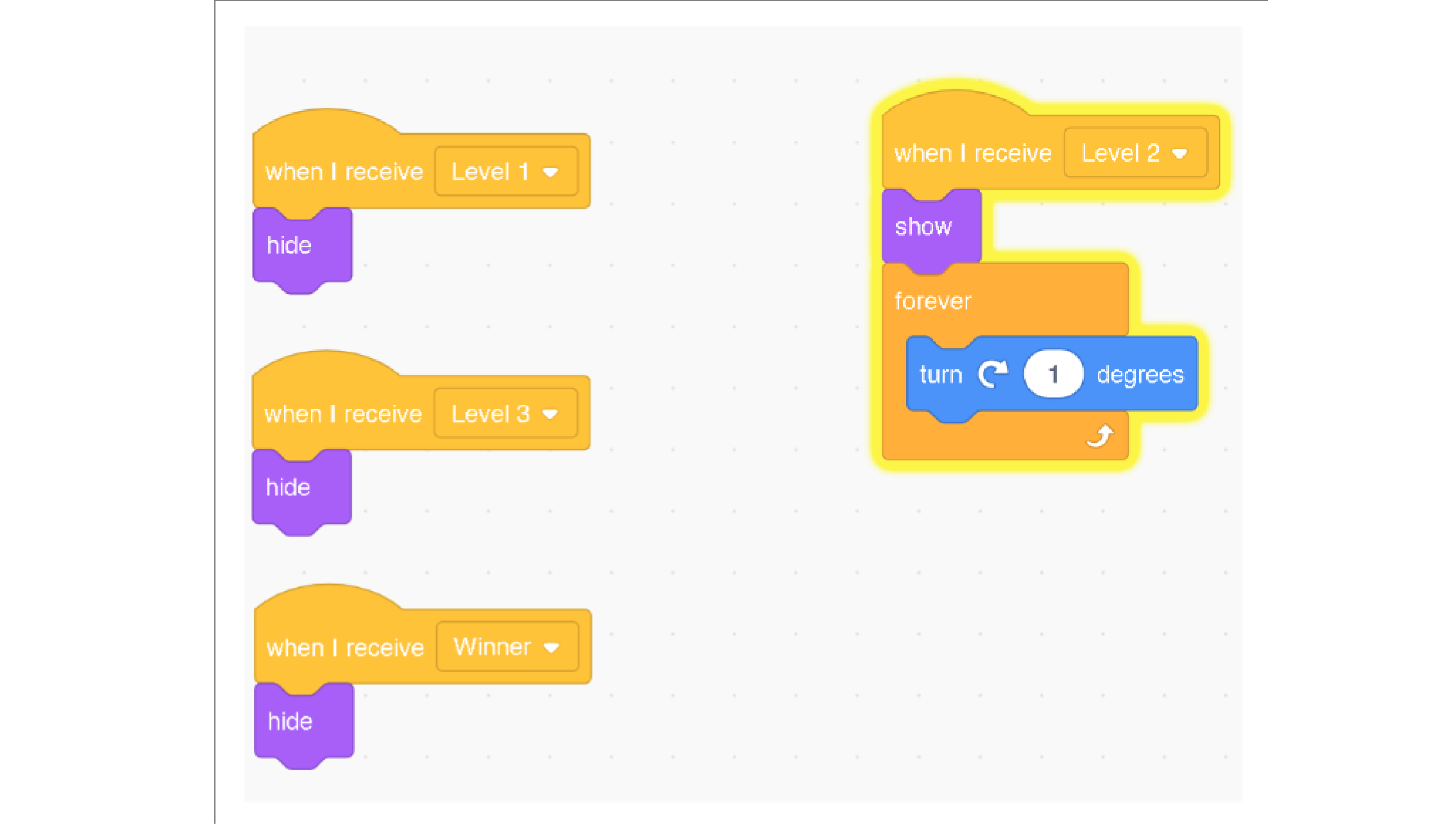

Add Obstacles (Hide / Show by Level)

Obstacles should only appear on certain levels using broadcasts.

▶ Video 4 help (Obstacles)

Create obstacle sprite (rectangle)
Use wall colour (pipette) so it “matches”
When I receive Level 1 → hide
When I receive Level 2 → show + spin (slowly)
When I receive Level 3 / Winner → hide
At the top of your main code: broadcast Level 1 (so obstacles know the game has started)
On obstacles: Level 1 hide, Level 2 show, Level 3 hide, Winner hide
Make it fair: slow the spin (e.g., turn 1 degree)

Obstacle shows only on the right level

10

Add a Score

Make a variable called Score and increase it when each level is completed.

▶ Video 5 help (Score)

Variables → Make a variable: Score
At start: set Score to 0
At each finish: change Score by 1
Challenge: Why might it not reset after Winner?
Make sure set score to 0 is under the green flag
Put change score by 1 inside each finish-colour IF block (before long waits)
Challenge: if score doesn’t reset after Winner, where else could you set it back to 0?

Score increases each level

11

Extension Challenges (Choose Your Own)

Add one extra feature using variables and IF statements. Test and debug it properly.

Extension tasks: Choose one challenge and finish it properly (then move up a tier). Keep testing so your maze still works.

Bronze (Accessible)

🟩 Key and Door (Single Level) — Add a key that must be collected before the door lets you finish the level.

Create a key sprite.
Create a variable called has key (for all sprites).
When the player touches the key:
- Hide the key
- Set has key to yes
At the door:
- If touching door and has key = yes → finish the level
- Else say: “You need the key!” (optional)

Hint: If your door won’t open, check you set has key to yes when you touch the key, and reset it back to no when you restart or change level.

I completed this challenge

🟩 Timer Challenge — Add a countdown timer. Reach the exit before time runs out.

Create a variable called time.
At level start, set time to 30 (or 20).
Create a timer script:
- Repeat until finished:
  - Wait 1 second
  - Change time by -1
  - If time = 0 → broadcast restart

Hint: If the timer goes down too fast, you might have started it twice. Keep the countdown in one place (one sprite / one script).

I completed this challenge

Silver (Requires planning)

🟦 Enemy That Moves (Patrol) — Add an enemy that patrols and sends the player back if touched.

Create an enemy sprite (simple shape is fine).
Make it move left/right (or up/down) in a loop.
Use wall detection to turn around:
- If touching wall colour → turn 180 degrees
If the enemy touches the player → broadcast restart.

Hint: Keep the enemy code on the enemy sprite. That makes it easier to fix if something breaks.

I completed this challenge

🟦 Destructible Wall — Add a wall that disappears only after collecting an item (switch / bomb / button).

Create a wall sprite that blocks a shortcut.
Create a switch/bomb/button sprite somewhere else.
Create a variable wall open set to no at level start.
When player touches the switch:
- Set wall open to yes
- Hide the switch (optional)
Wall sprite checks:
- If wall open = yes → hide
- Else → show

Hint: If the wall stays gone (or never disappears), check your variable. Reset wall open when you restart or when the level starts.

I completed this challenge

Gold (Stretch / mastery)

🟨 Multiple Keys, Multiple Doors — Add more than one key and door pair (e.g., red key opens red door).

Option A: make variables red key, blue key (values yes/no).
Option B: make one variable key (values none/red/blue).
Each door checks the matching condition before allowing progress.
Reset your key variables when restarting or changing level.

Hint: If a door opens when it shouldn’t, double-check your IF condition and your variable names. Reset your key variables when you restart.

I completed this challenge

🟨 Enemy With “AI” Behaviour — Create an enemy that follows the player when nearby (otherwise it patrols).

Enemy runs a loop forever.
If distance to player < 120:
- Point towards player
- Move slowly (e.g., 1–2 steps)
Else:
- Patrol like a normal enemy (turn at walls)
If touching player → broadcast restart.

Hint: Start simple: make it chase first. If that works, then add patrol behaviour when the player is far away.

I completed this challenge

Platinum (Open-ended)

🟪 Choice-Based Maze (Fork with Consequences) — Add a fork in the maze where each path has different risks or rewards.

Path A is shorter but has an enemy; Path B is longer but safe.
Path A contains the key; Path B is a shortcut but needs the key later.
Path A gives bonus points; Path B removes time from the timer.

Hint: Playtest both routes. Does one path feel unfair? If so, tweak the risk/reward and test again.

I completed this challenge

🟪 Self-Check (Use for Any Challenge) — Use this checklist to prove your extension is complete.

My maze still works (movement + walls + finish).
I tested my new feature at least 3 times.
I can explain which variable(s) I used and what they store.
I can explain at least one condition (IF) in my code.
I reset everything properly on restart / new level.

I completed this challenge

Teacher note Extension tasks

Success criteria:

Your original maze still works (movement + walls + finish + levels).
Your new feature is reliable (tested at least 3 times).
You can explain your code using: variable, condition, broadcast, loop.

If it breaks, undo your last change and try again. One change at a time.
